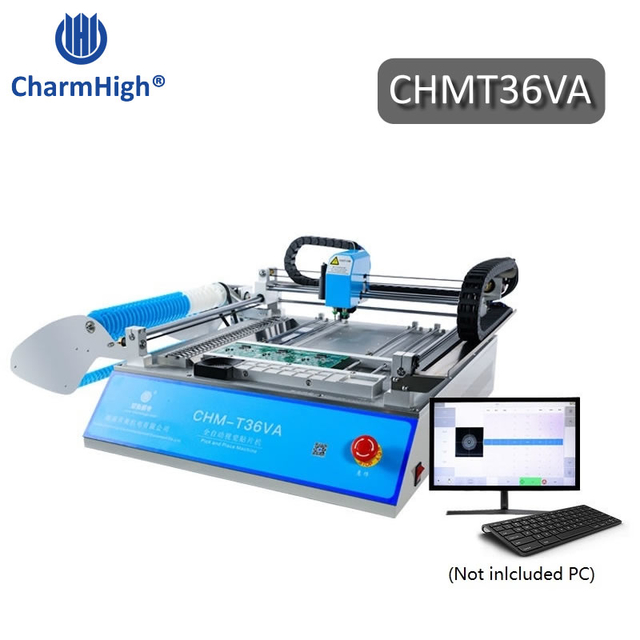

Low Cost with Good Accuracy CHMT36VA Desktop SMT Pick and Place Machine, with external PC control
Very good for small batch production, low volume production, protopyting, researching, eduction etc.
Charmhigh CHMT36VA Working with 0402, 0603,0805:
www.youtube.com/watch?v=zs5b8tm1hyk
Introduction:
1. Model number: CHM-T36VA
2. Brand: Charmhigh
3. Main configuration: Desktop type + Two vision cameras + 2 Heads 29 tape feeders + External PC control + Closed-loop control motor with encoder
4. Max PCB area: 355*355mm
5. Component: 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 960mm(L)×705mm(W)×335mm(H), AC220V/110V (50/60Hz)
7. Lead time: 1-3 working days(In stock)
8. Delivery: by DHL/ TNT express door to door, total takes 4-8 days.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
10. HS code: 8479.89.62.00 (Pick and place machine)
Description:
The CHMT36VA is a low-cost good accuracy two heads desktop-sized vision-based pick and place machine from Charmhigh. You can use it to produce a variety of designs, 50 to 100pcs at a shot. It works very well for low-volume high-mix pick and place of 0402 based designs.
CHMT36VA is a vision-based desktop pick and place machine which need to connect external PC with windows 7/10 system.
It is a very reliable and low-cost economic model, this small platform machine comes with an advanced vision system, closed-loop control, 29pcs material stacks support 29 tape feeders. High precision and easy operation software.
It is compatible with all different kinds of components 0402-5050, SOP, QFN, QFP... very suitable for prototype builders, hobbyists, developers, development groups, and small batches production, you just need to prepare a computer that has a USB port.
CHMT36VA compatible software: Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc. As long as the software can generate the X.Y coordinates.
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
