This link is the unit price for CHM-551 not inclduding shipping.
EXW price: CHM-551 (without base): $7800 ; with base add $400.
Please contact us by E-mail for detail shipping, our e-mail: sales@charmhigh-tech.com
Updated Model Genius small CHM-551 Desktop SMD pick and place machine. High precision ball screw Automatic PCB conveyor, 50 Feeders 4 heads SMT pick and place robot
CHM-551 SMT Pick and Place Machine (with Auto Nozzle Change) for SMT Batch Production. 0201 supported. CPK Test support. Economic solution for SMT assembly.
Updated model by Charmhigh, high precision, high configuration. Room saved, very good for small batch production with high stability.
Introduction:
CHM-551 is a four-head high-speed high-precision general-purpose automatic SMT pick and place machine with high-end configuration mechanism and excellent performance, and its price is affordable. It is used for R&D proofing and SMT small and medium-sized production, and can quickly recover investment cost.
Machine features
1. Support CPK test
2. Automatic nozzle change (13 sets nozzle library)
3. Thermal Compensation
4. Automatic conveying
5. Optimal speed:11500CPH IPC9850:8850CPH
6. .……
For more machine features, please consult our account manager by E-mail: kimi@charmhigh-tech.com
| CHM-551 Specifications | |
| Dimensions | 980mm(L) x1050mm(W) x 880mm(H) |
| Weight | 190kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal) IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |

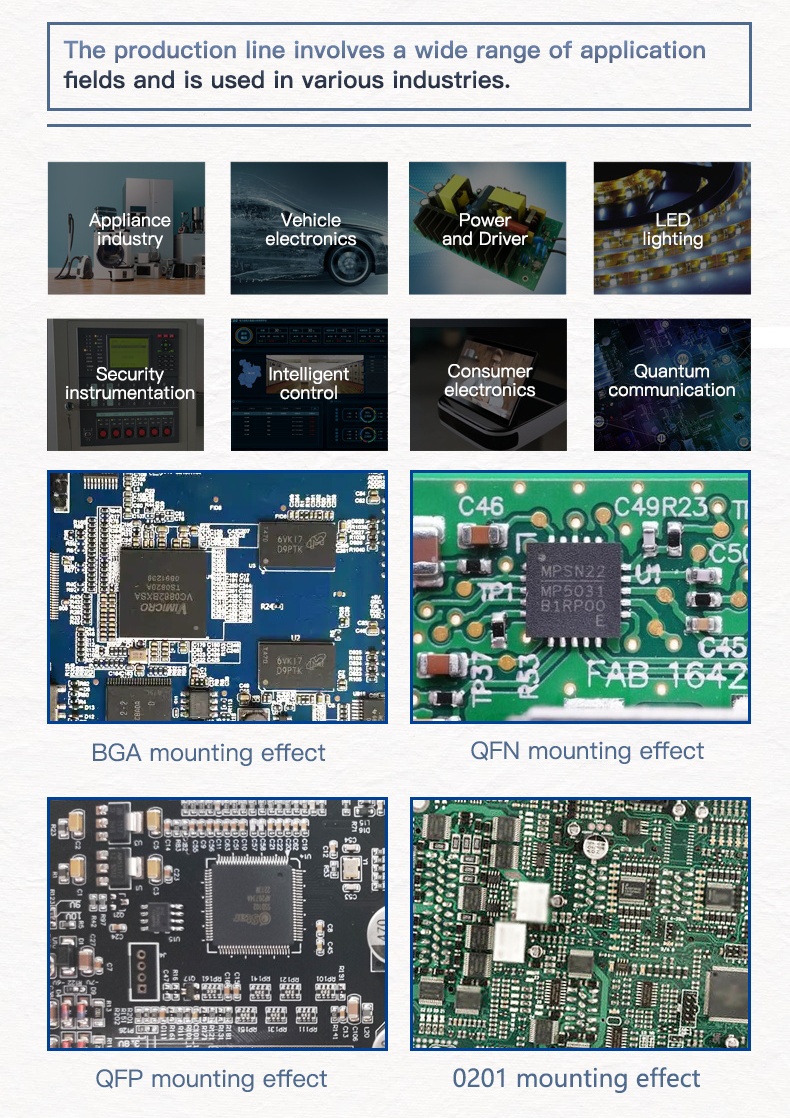

| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
Highlight:
1. Auto nozzle exchange, you don't need to change nozzle manually, very convenient!
2. Strong vision camera system, updated cameras with higher accurate, IC placecd more accurate, and min component 0201.
3. With PCB auto conveyor, built a small SMT production line, free your hands!
4. High configuration with smart software, longer lifespan, Charmhigh provide stronger mechanical part.
Working with universal standard Yamaha Feeders(purcahse separately):
Option:
1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder
3. Vibration feeder
| Item | Quantity | Item | Quantity |
| Pick and place machine | 1 | Tweezer | 1 |
| Nozzles | 8 | Inner Hexagon Spanner | 1 |
| Tool box | 1 | Lubricating oil | 1 |
| Warranty Card | 1 | Filter | 4 |
| User Manual | 1 | Quick connector | 1 |
| Test Report | 1 | Mouse Pad | 1 |
| Brush | 1 | Power Cable | 1 |
Kindly note:
The CHM-551 SMT pick and place machine only need to connect external air source which is prepared by yourself, and the Yamaha feeders need to be purchased separately.The machine has passed QC before ship out.We provide timely after-sales service, each machine 100% tested well before ship out. Please purchase it with confidence.Enjoy with your pick and place machine!Service & Warranty:The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.We always provide spare parts of machines, factory reliable direct supply.We provide online Q/A and troubleshooting support and technical advice service.Provide one-to-one after-sale service. Each machine 100% tested well before shipping out.Tech support & Contact:Kimi LiuCharmhigh Technology LimitedMob/ WhatsApp: 0086 135 106 75756Skype: kimiliu89E-mail: kimi@charmhigh-tech.comTim LeeCharmhigh Technology LimitedMob/ WhatsApp: 0086 186 734 21112Skype: 18673421112E-mail: tim@charmhigh-tech.comWelcome to follow us on YouTube: www.youtube.com/kimiLiuCharmhighIf you want to see more information and videos, please contact us by E-mail.We will reply as soon as possible.Charmhigh SMT, factory supply, prompt delivery.Charmhigh, top Chiense brand.
| CHM-551 Specifications | |
| Dimensions | 980mm(L) x1050mm(W) x 880mm(H) |
| Weight | 190kg |
| Power Supply | AC220V (50Hz,single phase) 1.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | vacuum pump |
| Mounting Head Quantity | 4 heads |
| Mounting Speed | 11500CPH (optimal) IPC9850: 8850cph |
| Mounting Accuracy | (XY)±0.06mm; CPK≥1.0 |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 350mm(L)x270mm(W) (Standard); 600mm(L)x350mm(W) (Optional) |
| Nozzle Change | Automatic nozzle change (13-hole nozzle library) |
| Control System | Built-in industrial computer (Windows) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Snapshot camerax4 (component size applicable: 14mm×14mm); IC camerax1 (component size applicable: 25mm×25mm); Mark camerax2 |
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
