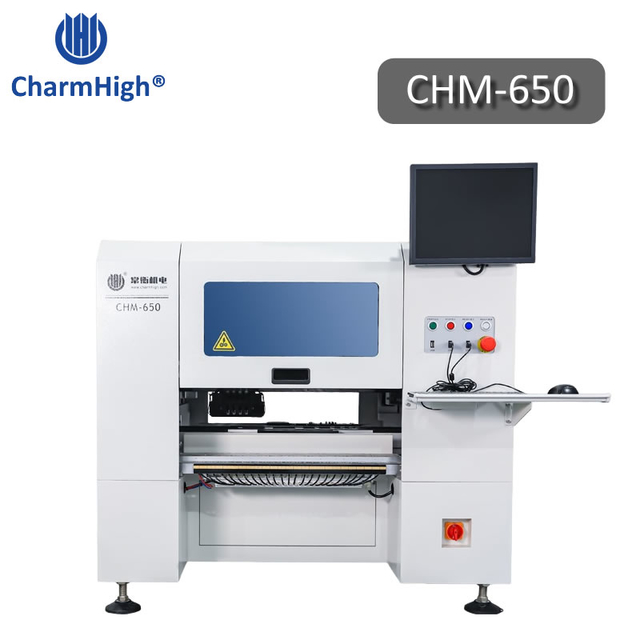

Highest Configuration CHM-650 Desktop SMT Pick and Place Machine CPK test passed CPK≥1.0 (XY)
3 Pieces Auto PCB Conveyor, 4 Heads 50 Feeders, Ball Screw, Servo Motor (with Auto Nozzle Change) for SMT Batch Production 0201 perfect mounting
New updated model by Charmhigh 2023, higher precision, higher configuration.
Room saved, very good for small batch production with high stability.
Introduction:
1. Model number: CHM-650
2. Brand: Charmhigh
3. Main configuration: High precision 0201 + Auto PCB conveyor + 4 heads 50 feeders + Desktop type + Ball screw with & linear guide + Servor motor + 7 cameras + Yamaha feeders supported
4. Max PCB area: 400*350mm
5. Component: 0201, 0402-5050, SOP, QFN, QFP, BGA etc.
6. Dimension: 1280mm(L)*1190mm(W)*1050mm(H), AC220V/110V (50/60Hz)
7. Lead time: 5-7 working days
8. Delivery: by DHL door to door, by air, by sea, or pick up from our factory, or ship to shipping agent , contact us for more shipping options.
9. Payment method: wire transfer (T/T); PayPal; credit card; W/U
10. Packing: plywood box
11. HS code: 8479.89.62.00 (Pick and place machine)
Description:
This is an updated model from Charmhigh, it has high configuration and higher preicision, if you want a high precision machine, this one is your best choice! This model has 3 pieces auto PCB conveyor, it can connect with SMT conveyor desk and reflow oven, delivery PCB into reflow oven.
Youtube working video:
www.youtube.com/c/KimiLiuCharmhigh/videos
CHM-650 Specifications | |
Dimensions | 1280mm(L)x1190mm(W)x1050mm(H) |
Weight | 310kg |
Power Supply | AC220V (50Hz, single phase), 2.1kW |
Air Supply | 0.5MPa ~ 0.7MPa |
Vacuum Generation | Vacuum generator |
Mounting Head | 4 Heads |
Mounting Speed | 10000cph(optimal) ; IPC9850: 8500 |
Mounting Accuracy | ±60μm; CPK≥1.0 (XY) |
Control Accuracy | 5μm |
Component Height | 12mm |
Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
PCB Thickness | 0.6mm~3.5mm |
PCB Size | 400mm(L)x350mm(W) |
PCB Conveying | 3-section-rail automatic conveying |
Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
Control System | Built-in industrial computer (Windows system) , equipped with monitor, keyboard, and mouse |
Drive System | X&Y axis driven by servo motors; adopting flexible S-curve acceleration and deceleration |
Transmission System | Ball screw + linear guide |
Feeding System | 50 Yamaha 8mm standard pneumatic/electric feeder slots (also suitable for IC tray and stick feeder) |
Vision System | Snapshot camera x 4 (component size applicable: IC camera x 1 (component size applicable: Mark camera x 2 |
