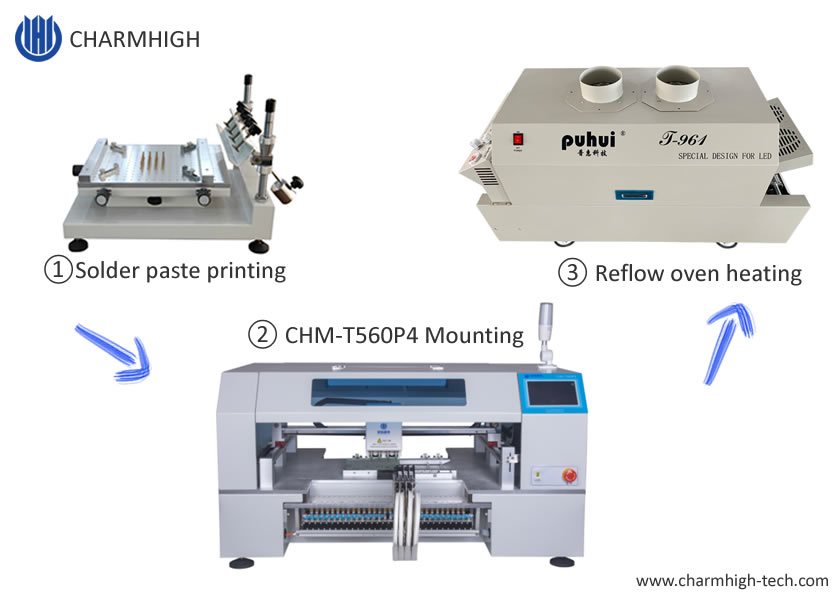

Best sale SMT Production line:
High precision 3040 Stencil printer + CHMT560P4 SMT pick and place machine + Conveyor type Reflow oven T-961 (220v)
Good for small batch production.
CHM-T560P4main features
1. Model number: CHM-T560P4
2. Brand: Charmhigh
3. Main configuration: Desktop type + 4 Heads 60 feeders + built-in PC + Embedded Linux system + closed-loopcontrol motor with encoder + 2 cameras + linear rail + auto calibrate PCB +touch screen
4. Feeder: 2 options: Yamaha pneumatic feeder & Electric feeder (feeders purchase separately)
5. PCB area: 400*270mm
6. Component: 0402-5050,LED, SOT,SOP, QFN.. etc.
7. Dimension: 1180mm(L)*870mm(W)*600mm(H)mm; AC220V/110V (50/60Hz)
8. Lead time: 2-3 working days
9. Delivery: by DHL or TNT / by air / by sea / pick up from our factorydirectly / send to China warehouse
10. Payment method: Credit card, Wire transfer (T/T); PayPal; W/U
11. Packing: plywood box

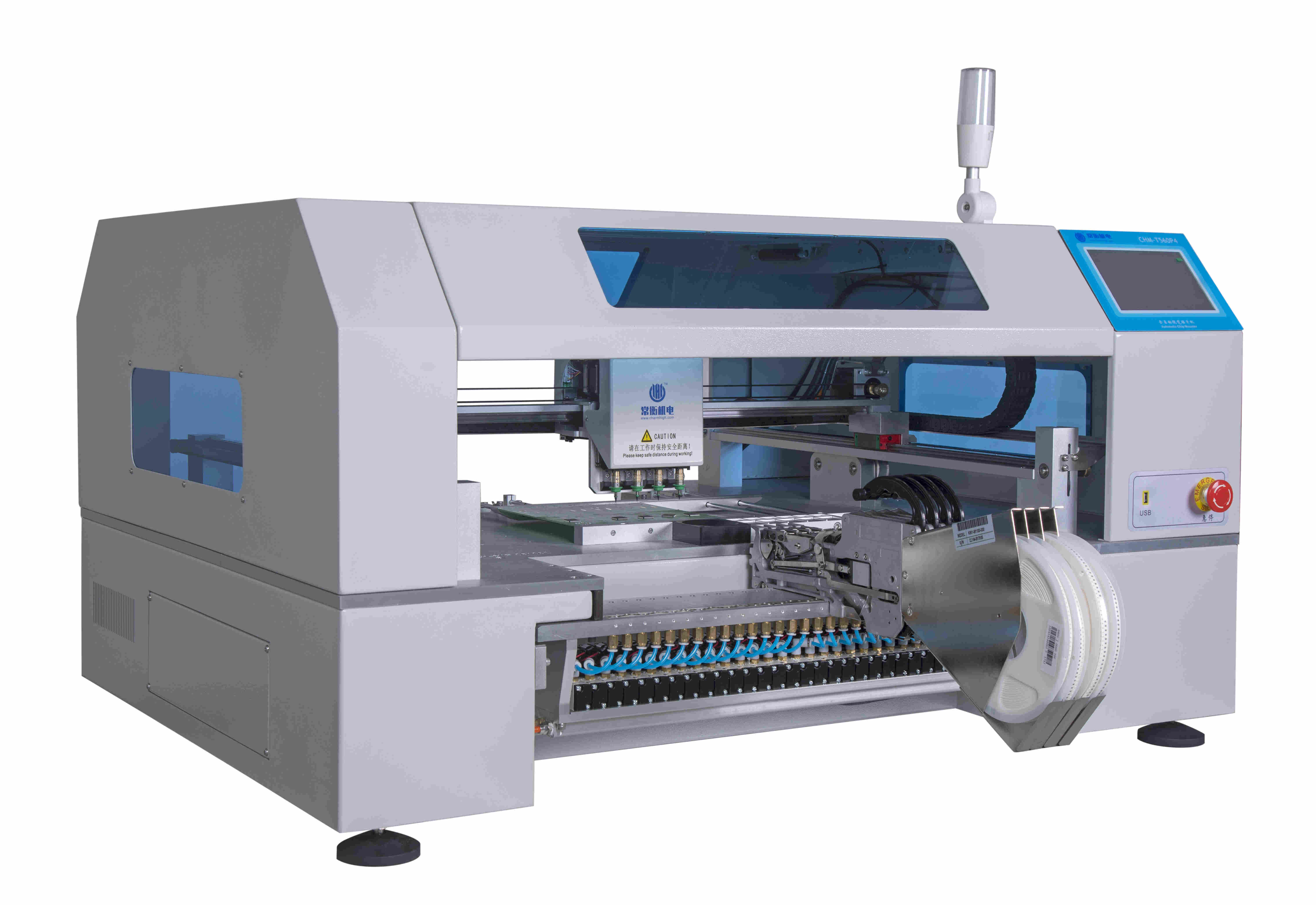

CHM-T560P4 description
ThisCHMT560P4 is an updated desktop pick and place machine which work with Yamaha feeders.
Ithas 4 heads with 60pcs feeder slots, front side 30pcs plus back side 30pcs, forsmall smt production is your good helper!
Theoperation system is industry level embedded Linux system, the main board ofmachine was researched by ourselves, which is more reliable than windowssystem, and life time is much longer.
CHMT560P4 using 502---507 different kinds of Juki nozzles, suitable for0402,0603,0805-5050, LED, SOT, SOP, QFN, BGA, Diode, Transistor...etc, which canmeet more customers' demand. Very good for small batch production or prototypingor education.
Ithas double vision cameras, which can auto calibrate the PCB before running,auto correction pick position and angle.
What you will get from this link: (This link not included feeders, feeders need to purcahse separately)
1. CHMT560P4 Desktop pick and place machine-----1
1)Pick and Place Machine CHMT560P4: 1
2)Juki nozzle total 4pcs (503, 504, 505, 506 size)
3)8G USB driver 1
4)Power Cord 1
5)Grease 1
6)Hex wrench 6
7)Tweezers 1
8)Brush 1
9)Additional belt set 1
10)Pen for touch screen 1
11)Fixture for IC tray 4
2. High precision stencil printer 3040-----1
3. Reflow oven T961 (220v)-----1
1.Convenient software, EmbeddedLinux System of the machine, stable industry mainboard, independent operation, no need external computer, operation easier andmore convenient, learn fast.
2. In-build touch screen, no need external monitor, room saved, more convenientoperation, USB mouse supported as well.
3. Top and bottomtwo vision cameras, correct the position of eachcomponents, you can view the vision image from screen for every components.(max component size 22*22mm)
4. It has flexible PCB clamping fixture, suitable for different size of PCB,CHM-T560P4 max support PCB 400mm(L)*270mm(W).
5. It supported custom IC tray, ICtray can be fixed on machine table. Software max allow 20pcs tray.
6. Four mounting heads with 4pcs JukiNozzles, Juki nozzle inside magnet, so it can be removed byfinger, no need to disassemble with wrench, nozzles rotation angle -180 degree to +180 degree.
7. Work with Yamahastandard pneumatic feeders(8mm/12mm/16mm/24mm/vibrationfeeder) and Electronic feeders(8mm/12mm/16mm).
8. Z axis detection, placement heads can auto back to origin toprevent nozzles break.
9. Max height component support10mm.
10. Closed-loopcontrol, X,Y Axis with encoder, not out of step.
11. PCB calibrated by two components position, then rest components willbe calibrated automatically.
12. Auto calibrate mark 2 points, itwill be auto calibration before every running, make sure every PCB mountingprecisely.
13. With vacuum detection, with automatic feeding, if one component suckcrooked, it will automatically throw it to deposit area, then pick a new one tomount again.
14.With vision detection, camera willauto correction component angle and place on PCB board right place. If headsnot picking up components, camera will detect it and go back to pick again, 3times not picking, machine will alarm and stop, after supply material, thencontinue working, no need to start over again.
15. Comes with converttool (PC version), edit work file in computer and load work file intomachine by USB port, quick and convenient.
16. Support panelized boards.
17.If you don't have PCB file, you can createa new work file to program in machine directly.
18. Support single step.
19. Support cut tapes/ bulk material/ tube material.

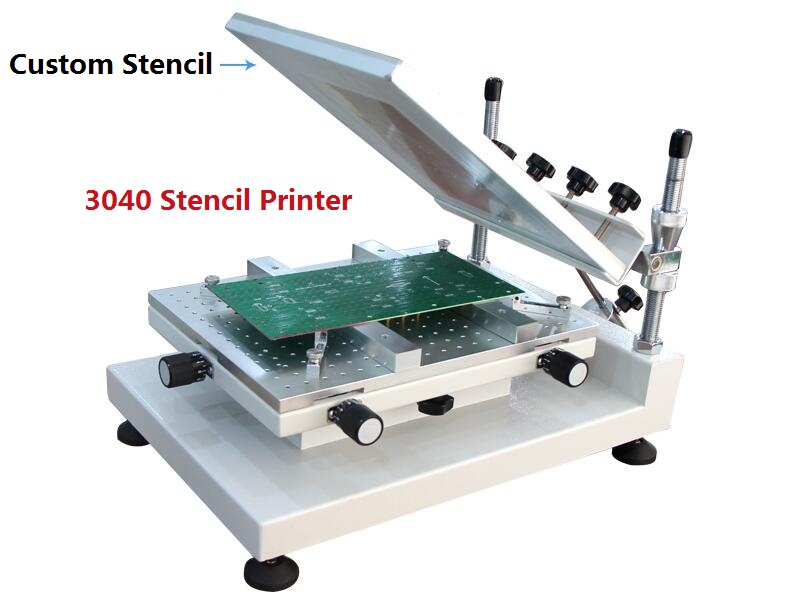

1. High precision stencil printer:
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | +-0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 630*450*480mm |
| Weight | NW.22Kg GW.23Kg |
2. CHM-T560P4 Parameters
| Model | CHM-T560P4 |
| XYZ Axis travel | 600mm(X)*630mm(Y)*20mm(Z) Max height component:10mm |
| PCB max size | 400mm(L)*270mm(W) |
| Support components | 0402-5050,LED, SOT, SOP, QFN,BGA etc. |
| Mounting speed | · Without vision:5000cph · With Vision:4000cph |
| Precision | ±0.025mm |
| Placement head | 4 heads |
| Feeding system | Support max 60pcs 8mm tape reels *Feeder option: (Yamaha universal type) 1.electric feeder: 8mm (for 0402 etc) 2.pneumatic feeder: 8,12,16,24mm 3.vibration feeder(3 tubes/ 5 tubes) · 11pcs front bulk material · Support IC tray |
| Vision detection | Double cameras (up & down) Up-looking camera max recognize range of component: 22*22mm |
| Motor control | · -XY Axis stepper motor with encoder with closed-loop control · -Flexible S deceleration · -Z Axis reset detection |
| Components leakage detection | Vacuum detection / vision detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | Build-in 7 inches industry screen, no need external monitor or PC; (support cold plug-in USB mouse) |
| Operation system | Embedded Linux system |
| External air source | 0.5 MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Dimension | 1180mm(L)*870mm(W)*600mm(H) |
| Power | 250W |
| Net weight | 165Kg |

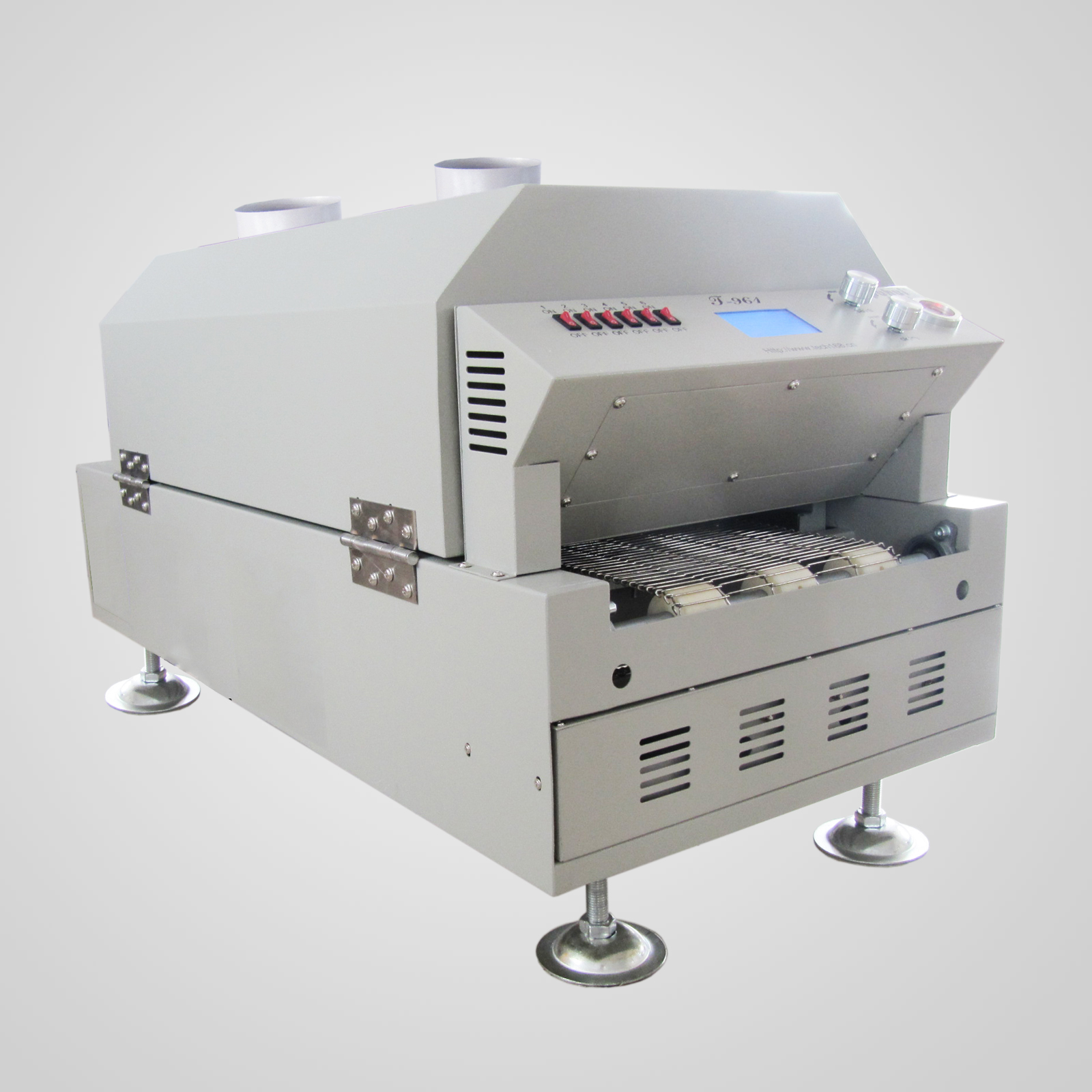

3. T961 Paramters:
| Model | T-961 |
| The heating zone quantity | upper3/down3 |
| The length of the heating zone | 730mm |
| The heating type | intelligent level sirocco and rapid infrared heating |
| The cooling zone quantity | 1 |
| Maximum width of PCB board | 230mm |
| The operation direction | left→right |
| Delivery options | Net transmission&chain transmission |
| The speed of conveyer belt | 0-290mm/min |
| The power supply | 220V 50/60Hz |
| Peak power | 3.5KW |
| Heating up time | Around 7mins |
| Temperature control range | Room temperature-300 |
| Temperature control mode | PID closed-loop control |
| Temperature control accuracy | ±1 |
| PCB temperature distribution deviation | ±2 |
| Overall dimensions | 1000×466×445mm |
| Machine weight | 70KG |
CHMT560P4 need to work with Yamaha feeders: (purcahse separately):
1. 8mm electric feeder: work for 0402 component
2. other option: 8*4mm / 12mm/ 16mm/ 24mm pneumatic feeder
3. vibration feeder (for tube material)
Service& Warranty:
Thecomplete machine has a warranty period of 1 year from the time of purchase andlifetime service.
Wealways provide spare parts of machine, factory direct supply with guarantee.
Weprovide online Q/A and troubleshooting support and technical advice service.
Weprovide one to one after-sale service. Each machine 100% tested well before ship out.
Tech support:
Kimi'sMob/ WhatsApp: 0086 135 106 75756
Skype:kimiliu89
E-mail: kimi@charmhigh-tech.com
Welcome to follow us in YouTube: www.youtube.com/kimiLiuCharmhigh
If you want to know moreinformation, please contact us by E-mail.
We will response you at the firsttime.
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
1. Shipping by TNT/ DHL/ FeDex express door to door.
For package below 200kg , you can use TNT, DHL, Fedex or other express company, it is door to door service, it normaly takes 5-8 days delivery. Please note import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.
2. Shipping by air / sea.
For large quantities, above 500kg, you could use air or sea delivery.
FCA: We will ship the goods to warehouse in China asked by buyer, the air company will help arrange international flight to ship goods your place. The air shipping fee is buyer's responsiblity.
CIF: It means send goods to buyers' nearest seaport by sea shipping, about 18~40 days shipping time, it hasn't tracking informations, buyer must do customs clearance locally and pay custom tax, you could use an agent to do every local things and deliver the goods to your place.
FOB: It means you can arrange the shipping company, we will ship the goods to the sea port in China according to your notification, and we will do all local things in China. After goods leave China port, other fees is buyer's responsibility.
3. Shipping to Russia.
We will send the goods by plane, buyer no need to pay any taxes duty, first we will ship the goods to Moscow, shipper will do all the cutoms clearance, shipper will pay taxes in advance. After goods arrived Moscow, Russia local express deliver the goods to your place. So buyer don't need to worry about the tax problem.
Shipping time is about 18~35 workdays! it has detail tracking number and tracking informations.
Tracking website: https://www.17track.net/ru
4. Pick up from our factory directly.
You could use your own shipping agent or your DHL/TNT/Fedex account. You can arrange them pick up from our factory directly.
Or if you have any forwarder in China, we can ship the goods to your forwarder directly. We will send all the packing detail to you in advance.
